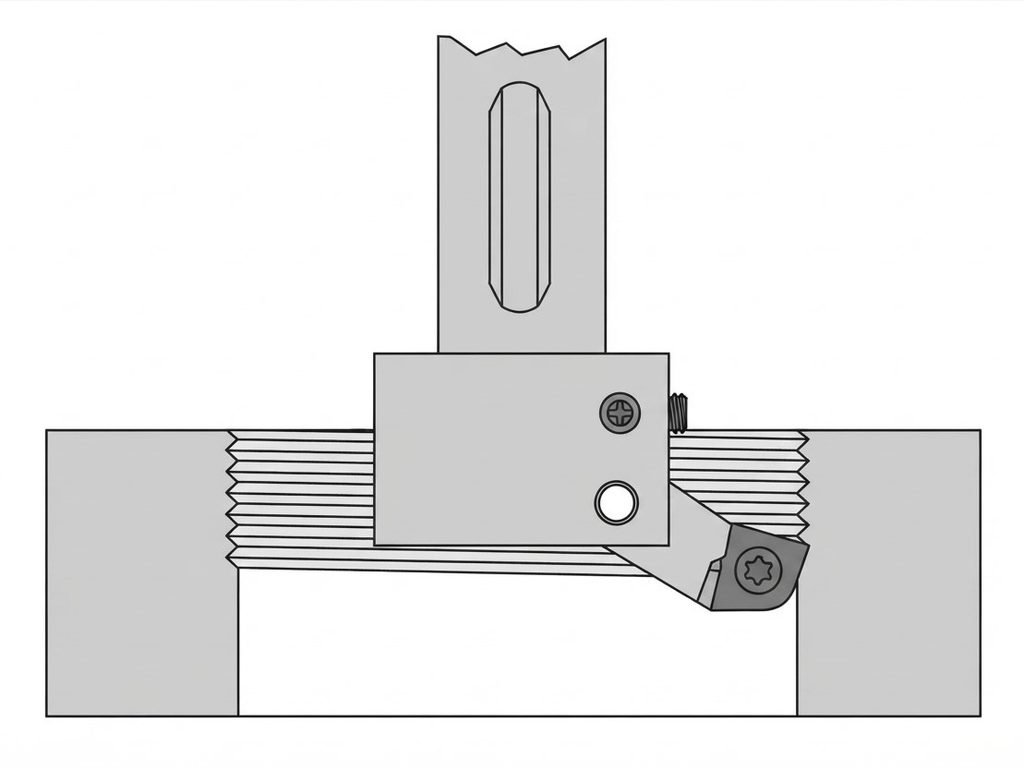

In Fanuc controllers, the G33 code is used for thread cutting. It is usually used more on CNC lathes, but in some special cases it can also be used on CNC mills.
Syntax
G33 Z... F...Z : The final depth coordinate of the thread.
F : The lead/pitch of the thread.
